PLEASURE CRAFTS
4.95m Tuggy Boat
Technical Data:
LOA: 4.95m
Beam of Hull: 2.30m
Beam with Side Tubes: 2.60m
Draught: 0.35m
Lightship: 900kg
Capacity: 5 people
Design Category: C
Engine Power Options: 18-27HP (inboard) / 25-40HP (outboard) / electric propulsion
Max. Speed: 8 knots (with 25HP)
Building Material: Polyester-Epoxy Rigid Hull and Deck
Designed by: Burak Acar, POSEIDON Ltd.
www.tuggyboats.com 6.70m Tuggy Boat
Technical Data:
LOA: 6.70m
Beam of Hull: 2.80m
Draught: 0.45m
Lightship: 2200kg
Capacity: 6 people
Design Category: C
Engine Power Options: 30-70HP (inboard) / 25-100HP (outboard)
Max. Speed: 13 knots (with 70HP)
Building Material: Polyester-Epoxy Rigid Hull and Deck
Designed by: Burak Acar, POSEIDON Ltd.
www.tuggyboats.com 8.95m Tuggy Boat
Technical Data:
LOA: 8.95m
Beam of Hull: 3.40m
Draught: 0.50m
Lightship: 4200kg
Capacity: 8 people
Design Category: C
Engine Power Options: 70-120HP (inboard) / 100-150HP (outboard)
Max. Speed: 16 knots (with 120HP)
Building Material: Polyester-Epoxy Rigid Hull and Deck
Designed by: Burak Acar, POSEIDON Ltd.
www.tuggyboats.com Floating Sunbathing Platforms
3m Catamaran Pleasure Craft
Technical Data:
LOA: 3.05m
Beam of Hull: 1.60m
Draught: 0.30m
Capacity: 3 people
Design Category: C
Engine Power Options: 1 x 9.9-20HP (outboard)
Max. Speed: 15 knots (with 1 x 20HP)
Building Material: GRP
Designed by: Burak Acar, POSEIDON Ltd.
Sea Scooter (Sea Joy Scooter)
Building Material: GRP
Designed by: Burak Acar, POSEIDON Ltd., © 2021
House Boat
11m Power Boat
Technical Data:
LOA: 10.90m
Beam of Hull: 3.55m
Draught: 0.45m
Capacity: 8 people
Design Category: C
Engine Power Options: 2 x 250-500HP (inboard)
Max. Speed: 35 knots (with 2 x 500HP)
Building Material: GRP
Designed by: Burak Acar, POSEIDON Ltd.
Foil Catamaran
12m Cabin Cruiser
Technical Data:
Length overall: 11.93 m
Length on Water Line: 11.04 m
Breadth moulded : 3.80 m
Draught: 1.26 m
Displacement: 11.5 t
Engine power: 2×260 HP (inboard, diesel)
Speed max: 25 knt
Service Speed: 20 knt
Propulsion System: 2 x conventional system
Fuel oil capacity: 250 lt (Diesel)
Capacity: 12 persons
Bed Capacity: 6
Cabin No: 3
Building Material: GRP
6.70m Sports Fisher
Technical Data:
LOA: 6.66 m (including aft platform)
Lhull: 6.06 m
LWL: 5.17 m
Beam: 2.67 m
Draught: 0.35 m
Lightship Weight: 1200 kg (w/o engine)
Design Category: C
Engine: 75-150 HP
Max. Speed: 30 knt
Capacity: 6 pax
Propulsion: outboard engine
Building Material: GRP with vinylester
Builder: Taygeta Yachting / Bodrum
Designed by: POSEIDON Co., © 2021 5.80m Center Console
Technical Data:
LOA: 6.25 m (including aft platform)
Lhull: 5.80 m
LWL: 4.95 m
Beam: 2.45 m
Draught: 0.35 m
Lightship Weight: 950 kg (w/o engine)
Design Category: C
Engine: 75-120 HP
Max. Speed: 30 knt
Capacity: 4 pax
Propulsion: outboard engine
Building Material: GRP with vinylester
Builder: Taygeta Yachting / Bodrum
Designed by: POSEIDON Co., © 2021 6.90m Day Cruiser
Technical Data:
LOA: 6.90m
Moulded Beam: 2.90m
Draught: 0.40m
Lightship Weihgt: 2,200kg
D/O Tank: 200lt
F/W Tank: 100lt
Engine Power: 100HP
Speed: 15 knt
Capacity: 6 pax
Design Category: C
Designed by: POSEIDON Co., © 2016 8.90m Walkaround Motor Cruiser
Technical Data:
Length overall: 8.90m
Breadth moulded : 3.20m
Draught: 0.50m
Ligthship Weight: 4.2t
Engine power: 1×250 HP (inboard, diesel)
Speed max: 25 knt
Propulsion System: 1 x Tail Shaft
Diesel oil capacity: 400lt
Capacity: 8 persons
Bed Capacity: 3
Cabin No: 2
Design Category: C
Building Material: GRP
Designed by: POSEIDON Co., © 2016 7.80m Day Cruiser
Technical Data:
Length of Hull: 7.85m
LOA (with Aft Platform): 8.55m
Moulded Beam: 2.98m
Draught of Hull: 0.50m
Extreme Draught: 0.90m
Engine: 1×80 HP
Speed: 9 knots
Design Category: C
Building Material: GRP
Designed by: Burak Acar, POSEIDON Co., © 2019 9.50m Day Cruiser
Technical Data:
LOA: 10.30 m (including aft platform)
Lhull: 9.53 m
LWL: 9.04 m
Beam: 3.43 m
Disp.: 7.5 t
Design Category: B
Engine: 200 HP (standard option)
Max. Speed: 15 knt
Propulsion: tail shaft
Engine / Speed Otipons:
With 80 HP, 9 knt speed
With 120 HP, 11 knt speed
With 2 x 150 HP, 21 knt speed
Accommodation:
1 master cabin and 1 guest cabin
Building Material:
Wood&Epoxy or GRP
Designed by: POSEIDON Co., © 2011 11.50m Catamaran Motorboat
Technical Data:
Length overall: 11.50 m
Length on Water Line: 11.45 m
Breadth moulded : 5.00 m
Draught : 0.65 m
Full Displacement: 9.80 t
Engine power: 2×100 HP (inboard diesel, or outboard engines)
Speed max: 15 knt
Fuel oil capacity: 3 x 300 lt (Diesel)
Capacity: 10 persons
Bed Capacity: 5
Cabin No: 3 (2 x Twin Cabins and 1 x Single Cabin)
Building Material: GRP / Aluminum
Designed by: POSEIDON Co., © 2011 7.80m RIB
Technical Data:
Length overall: 7.80m
Breadth moulded : 3.40m
Draught: 0.30m
Tube Diameter: 0.65m
Engine power: 1×40-200 HP (outboard)
Speed max: 35 knt
Diesel oil capacity: 50lt
Capacity: 8 persons
Design Category: C
Building Material: GRP
Designed by: POSEIDON Co., © 2019 12.00m RIB
Technical Data:
Length overall: 12.32m
Breadth moulded : 4.05m
Draught: 0.55m
Tube Diameter: 0.56m
Engine power: 2×300 HP (outboard)
Speed max: 40 knt
Diesel oil capacity: 150lt
Capacity: 10 persons
Design Category: B
Building Material: GRP
Designed by: POSEIDON Co., © 2020 6.50m Sloop (Rakser)
Technical Data:
LOA: 6.50m
Beam of Hull: 2.40m
Draught: 0.60m
Lightship: 1000kg
Capacity: 6 people
Design Category: C
Engine Power Options: 30HP (outboard)
Max. Speed: 11 knots (with 30HP)
Building Material: Polyester-Epoxy Rigid Hull and Deck
Builder: Kutlay Marine
Designed by: Burak Acar, POSEIDON Ltd.
8.50m Day Cruiser (De Rone)
Technical Data:
LOA: 8.50m
Beam of Hull: 2.85m
Draught: 0.70m
Lightship: 2500kg
Capacity: 8 people
Design Category: C
Engine Power Options: 40-150HP (inboard)
Max. Speed: 17 knots (with 150HP)
Building Material: Polyester-Epoxy Rigid Hull and Deck
Builder: Kutlay Marine
Designed by: Burak Acar, POSEIDON Ltd.

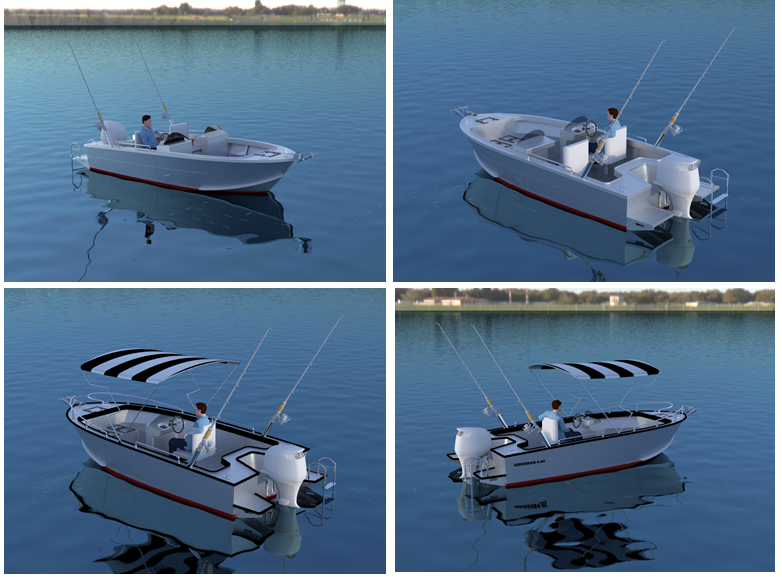

4.60m Aluminum Boat
Technical Data:
Length Over All (LOA) : 4.65 m
Length On Water Line (LWL) : 4.00 m
Breath Moulded (B) : 2.11 m
Depth Moulded (D) : 1.01 m
Draught Moulded (T) : 0.28 m
Engine : 9.9 – 50 HP
Speed : 20 knots (max.)
Building Material : Aluminum
Capacity : 4 pax
Design Category : C
Designed by: Burak Acar, POSEIDON Ltd.
4.95m GRP Day Cruiser
